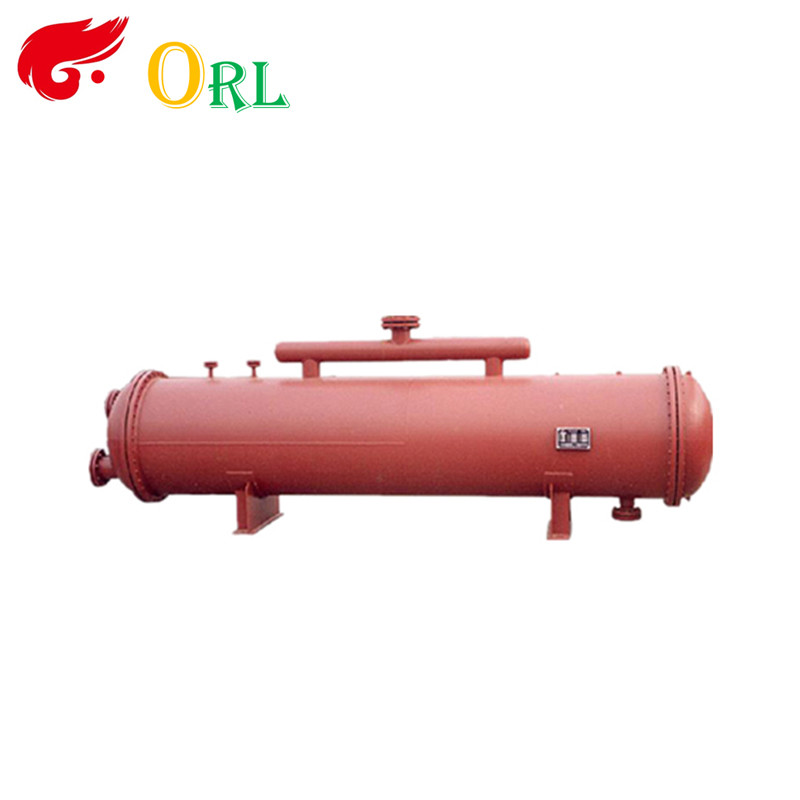

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler

    Ask Lasest Price
    Brand Name : ORL Power
    Model Number : Customization
    Certification : ISO9001/SGS/TUV/ASME/EN
    Price : Contact me | Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100Ton/Tons per Month
    Delivery Time : 50~100 Days
    • Product Details
    • Company Profile

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler

    Description


    In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.


    Product parameter


    Product NameBoiler Steam Drum ( Steam Water Separator )
    Applied AreaNatural circulation boiler
    Drum Shell Plate Material

    - Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70

    - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353

    Drum Head MaterialSame as shell
    Nozzle Tube MaterialAs per design
    StandardChina GB, ASME, EN
    Manufacturer GradeChina A Grade, ABS Certificated, TUV Certificated
    Working TemperatureSaturation Temperature at rated pressure
    Working Pressure1.6 MPa ~ 22.5 MPa

    Shell Plate Thickness

    (Drum Wall Thickness)

    ≤150 mm
    Drum Diameter≤3,200 mm
    Drum Length≤25,000 mm
    Welding

    - Shell : SMAW, SAW

    - Nozzle tube : GTAW (TIG), SMAW

    Welding NDT

    - Shell longitudinal seam : 100% RT, 100% UT

    - Shell circumferential seam : 100% RT, 15% UT

    - Nozzle tube angle seam : 100% UT, 100% MT


    Boiler Parts

    Boiler Super Heater,Boiler High Temp Superheater,Boiler Cyclone Separator,Boiler Flue,Boiler Heat Pipe Air Preheater,Boiler Gen Bank,Boiler Heat Pipe Elements,Boiler Tube Pin,Boiler Tubeshield,Boiler Ditch Tube


    Name&TypeSupply Ability:FOB Price
    Boiler drum100Ton/Tons per MonthContact Me Get Latest Price
    Boiler header100Ton/Tons per MonthContact Me Get Latest Price
    Boiler waterwall panel500Ton/Tons per MonthContact Me Get Latest Price
    Boiler economizer500Ton/Tons per MonthContact Me Get Latest Price
    Boiler super heater300Ton/Tons per MonthContact Me Get Latest Price
    Boiler air preheater300Ton/Tons per MonthContact Me Get Latest Price
    Other300Ton/Tons per MonthContact Me Get Latest Price


    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Boiler Product Production


    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In BoilerFloor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler

    Testing Center

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Boiler Product Test

    Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection


    Packaging & Shipping

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    Trading Process

    Floor Standing CFB Boiler Drum Non Toxic , Steam Drum In Boiler


    ORL offers prompt response, professional products, and all-around service to our customers. Our experienced sales team and engineers are waiting for your enquiry and ready to provide sincere service. We cordially welcome domestic and overseas friends to visit our company and manufacturing bases, and look forward to building up long-term, mutual cooperative relationship with you.
