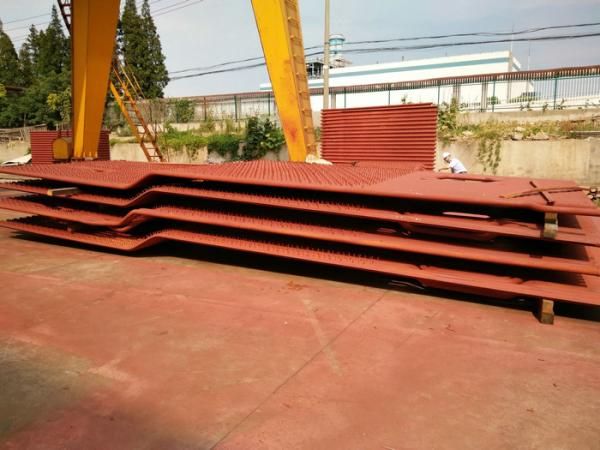

High Pressure CFB Boiler Water Wall Panels Water Tube ASME with
Certification
Description
A waterwall in a boiler is any furnace wall that is comprised of
refractory and tubes in a water-tube boiler. The tubes are evenly
spaced and generally connect to headers which in turn are connected
back to the main generating bank of the boiler. They serve a two
fold purpose here in that they capture heat that would otherwise
escape to the atmosphere and help heat the water in the boiler. And
they also help keep the refractory cool .This prevents spalling of
the refractory.
Our membrane water wall are manufactured with high grade raw
material and contemporary production equipment at our advanced
production unit. Various sizes, shapes and specifications, will
meet all the requirements of our clients . Further, cargoes are
delivered to the clients within lead time.
Specifications
| Name | Membrane water panel |
| Material | Carbon steel,Alloy steel,etc. |
| Tube size | Φ38 - 76 mm, Customization |
| Standard | ISO , ASME |
| Model | Studded |
| Dimension | Customization |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+
tempering) → Inspection →Polishing→Tube joint welding→Assembly
→Welding →Inspection→Heat treatment→Hydraulic pressure
test→Painting→ Packaging |
| Installation location | around the boiler combustion chamber |
Advantages of Membrane Water Wall
1). To guarantee the leakproofness of furnace wall and reduce the
air leak of combustion chamber.
2). To achieve the full water cooling of combustion chamber, and
the boiler accessories membrane water wall is benefit to prevent
coking under the condition of supplemental firing.
3). The thermal storage capacity is small, the warming of
combustion chamber is fast and the cooling is also fast, which
could shorten the cooling time of boiler’s start and furnace shut
down.
4). It is good to adopt top supported water cooled wall and it
could reduce the load of boiler framework, which is benefit to
overhang.
5) Compared with the bare tubes, the membrane water wall improves
the heat absorption capacity of tubes.
6) The factory direct boiler membrane water wall could improve the
Preliminary combination degree of boiler parts and reduce the
installation workload.
Company Information
Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu
Province.
ORL Power is a leading company and exporter of industrial
boilers,power plant boilersand boiler parts (including steam drum,
membrane waterwall panel,header,economizer, evaporator,
superheater,H-fin economizer, spiral fin tube, air preheater, heat
pipe, flue etc.), seamless steel tubes/pipes and ERW steel
pipes.ORL provides our customer with full range of services
including boiler design, fabrication, installation and
commissioning, boiler maintenance, and supervision at site. Our
product and service include design and manufacture industrial
boilers, pressure vessels and tanks, and pressure parts for power
plant boilers (600MW, or 1000MW).
Product Description
Boiler Parts
Boiler Drum,Boiler Waterwall Panel,Boiler Economizer,Boiler
Header,Boiler Cyclone Separator,Boiler Chimney Flue Pipe,Boiler Air
Preheater,Boiler Air Preheater
Production Workshop
Boiler Product Test
Impact test,The scene to examine the water-wall,Industrial TV
monitoring,Snake-like pipe water pressure test,Header endoscopic
detection,Header weld inspection
Testing Center
certifications
Packing&Shipping
Company Business
Trading Process
ORL offers prompt response, professional products, and all-around
service to our customers. Our experienced sales team and engineers
are waiting for your enquiry and ready to provide sincere service.
We cordially welcome domestic and overseas friends to visit our
company and manufacturing bases, and look forward to building up
long-term, mutual cooperative relationship with you.
FAQ
1. Why choose us?
We are boiler and boiler parts(boiler drum, boiler waterwall panel,
boiler economizer, boiler header, boiler cyclone separator, boiler
flue pipe, boiler air preheater, boiler pipe, boiler
tube)manufacture and we are one of the best suppliers in China.
We ensure the deliver time, high quality, and the best after-sale
service for you.
2. How to order?
Welcome come to our factory for inspecting and discussion the
technical details.
