    Gas Fired Boiler Superheater / Low Pressure Steam Super Heater 10~1000 Ton

    Ask Lasest Price
    Brand Name : ORL Power
    Model Number : Boiler Superheater
    Certification : ISO9001/SGS/TUV/ASME/EN
    Price : Contact me | Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Ton/Tons per Month
    Delivery Time : 50~100 Days
    • Product Details
    • Company Profile

    Gas Fired Boiler Superheater / Low Pressure Steam Super Heater 10~1000 Ton

    Gas Fired Boiler Superheater / Low Pressure Steam Super Heater 10~1000 Ton

    Boiler Superheater Description


    Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.
    In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.
    Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.


    Technical parameters:

    Material

    carbon steel, alloy steel , or durable heat steel

    Tube OD

    30-60mm, or as per requirement

    Tube W.T.

    0.8mm- 15mm

    Structure

    vertical or horizontal

    Type

    radiant, convection superheater


    Super heater types:


    1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
    Parameters that increases the convection
    a. Increasing the fuel-and air flow (combustion gas flow)
    b. Increasing the mass flow rate of the steam
    Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.

    Radiant super heater


    They are placed exposed to the heat source whcih requires the improvement of metal temperatures.
    Radiant and convetive super heaters and reheaters are used for high temperature steam.
    The accessory of high temperature radiant steam super heater in boiler
    It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.

    Reheaters


    They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

    Application:

    Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
    For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.

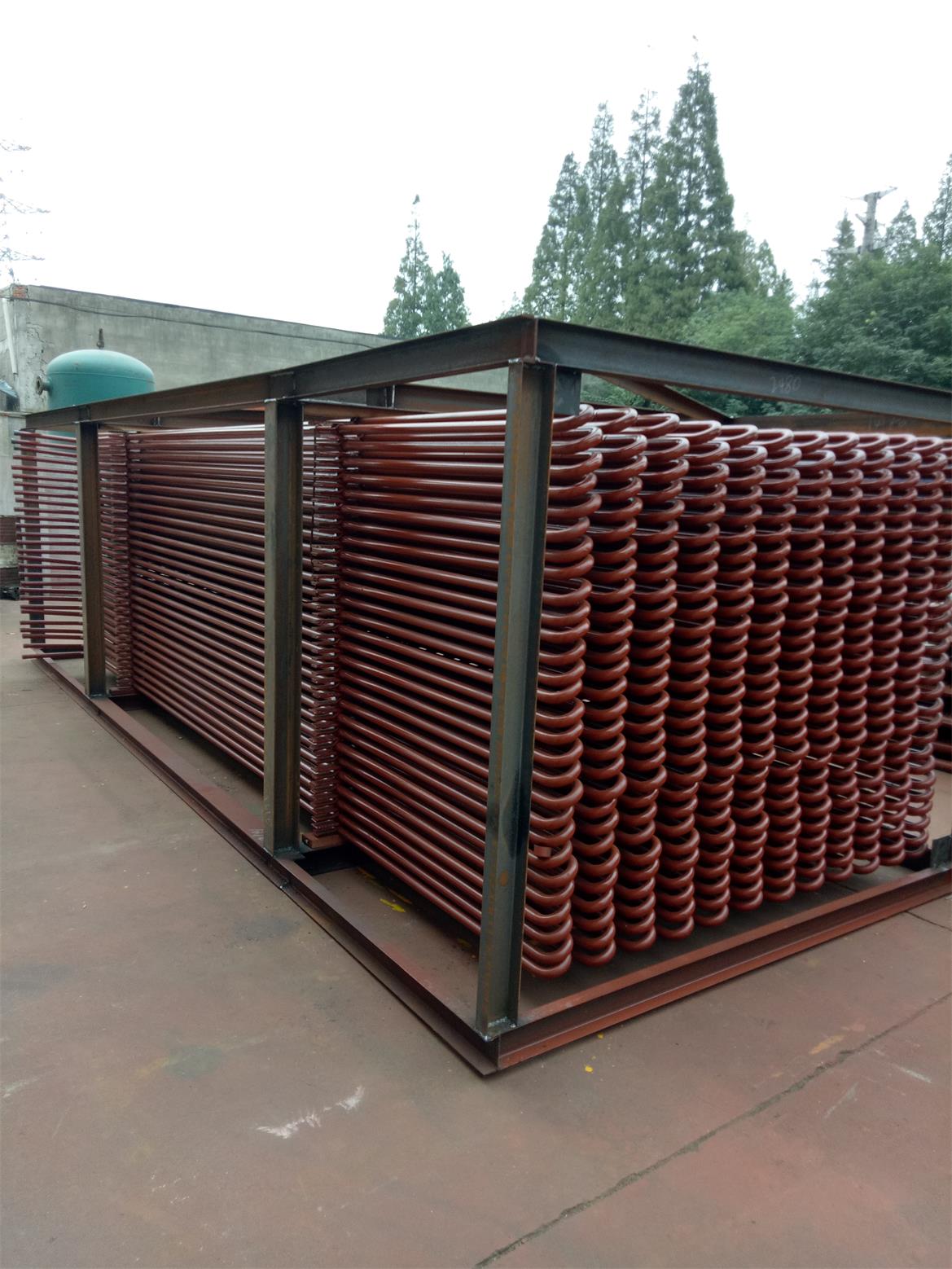

    Boiler Superheater Detailed Images


    FAQ


    1. Why choose us?

    We are boiler and boiler parts(boiler drum, boiler waterwall panel, boiler economizer, boiler header, boiler cyclone separator, boiler flue pipe, boiler air preheater, boiler pipe, boiler tube)manufacture and we are one of the best suppliers in China.

    We ensure the deliver time, high quality, and the best after-sale service for you.


    2. How to order?
    Welcome come to our factory for inspecting and discussion the technical details.
